Milescraft CabinetPRO
The CabinetPRO Hardware Installation Jig from Milescraft is designed for accurate, repeatable installation of cabinet hardware with minimal setup time. Built from solid metal to eliminate flex, it delivers consistent results across multiple doors, drawers and cabinets.

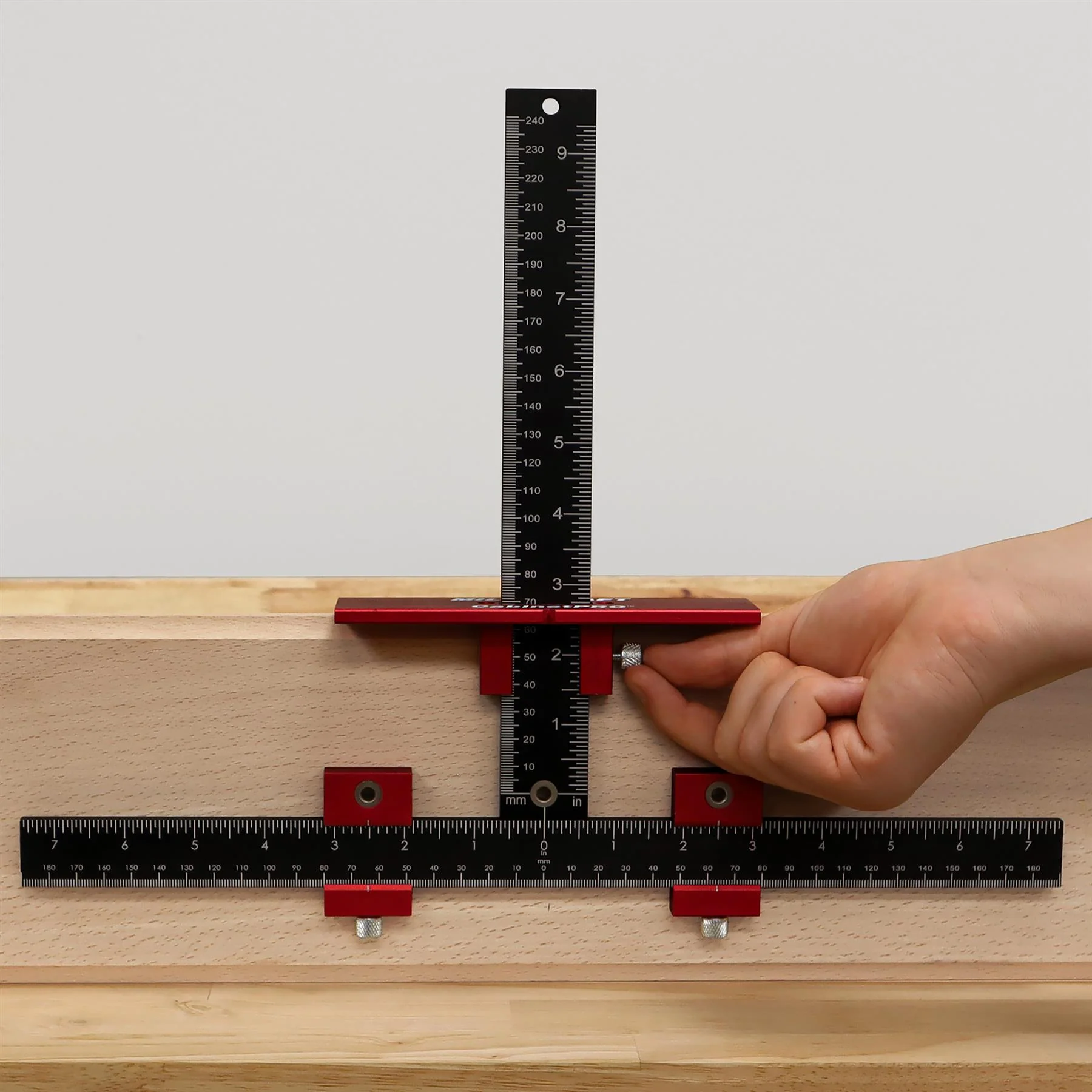

High-visibility, laser-etched scales in both metric and imperial measurements allow precise alignment, while hardened steel drill guides adjust quickly to suit knobs, pulls and handles. Dual edge stops position the jig accurately on doors and drawers, ensuring clean, professional hole placement every time.

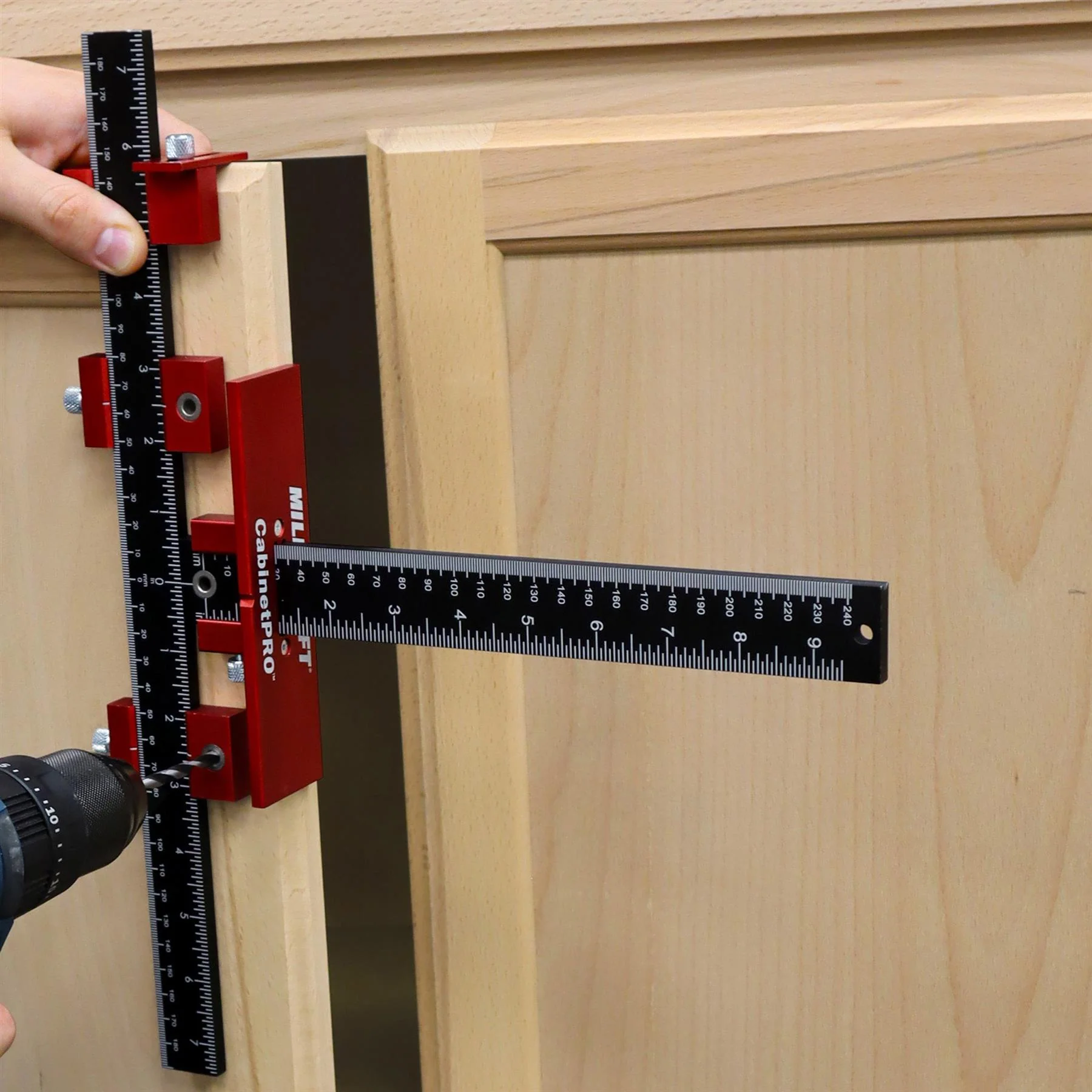

The reversible design allows drilling of both left- and right-hand doors by simply flipping the jig, with no need to change settings. The 32mm spacing between drill guides also enables drilling of three shelf pin holes at a time, adding further versatility.

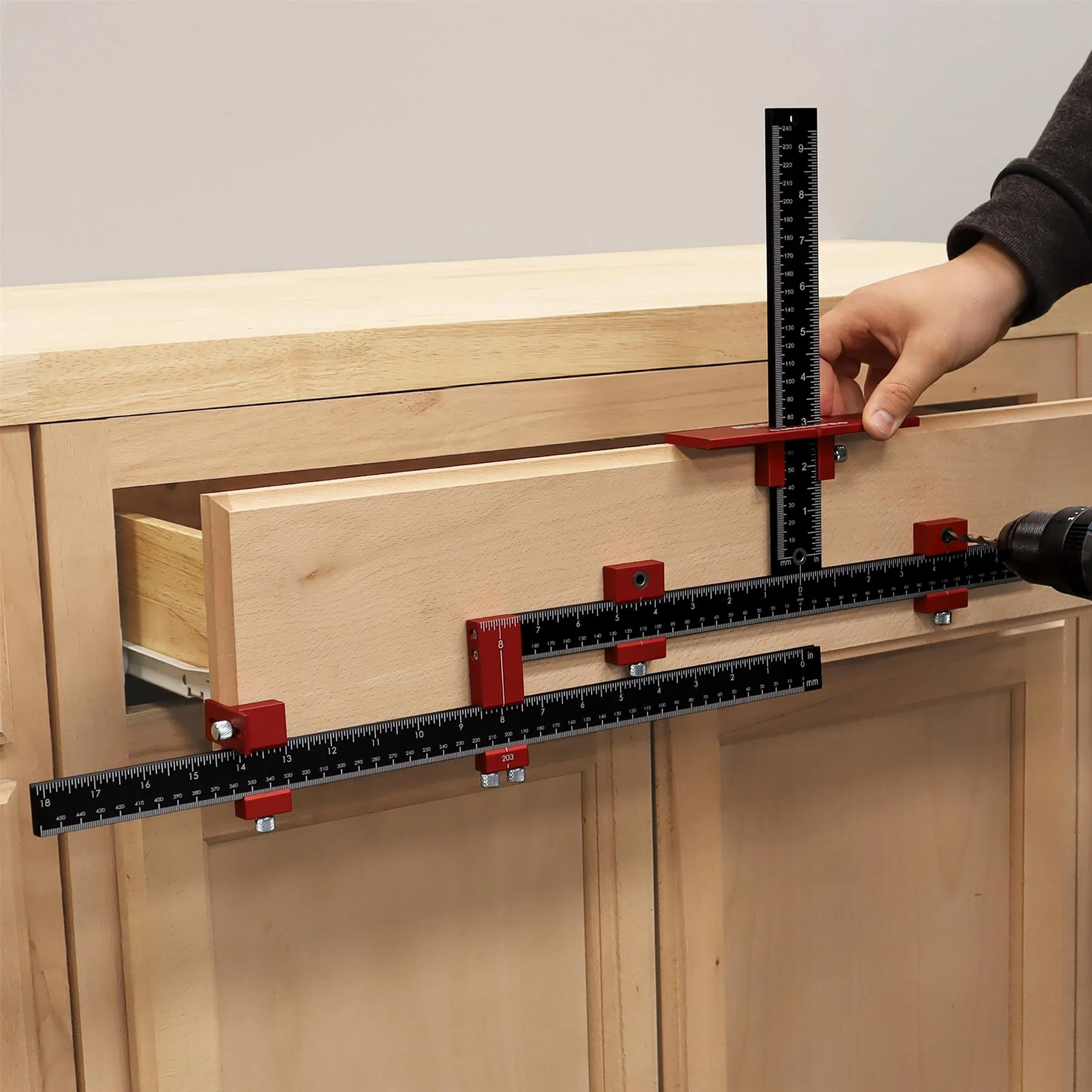

An included extension ruler expands the working range from 32mm (1-1/4”) up to 830mm (32”), making the CabinetPRO suitable for wide drawers, tall doors and long hardware. Centering notches assist alignment to layout marks, and supplied hardware spacers automatically set drill guides to the correct width for each handle center.
Supplied pre-assembled in a rugged, foam-lined carry case, the jig can be stored with its last setup intact, allowing you to take onsite, keep in the workshop and return to work quickly and consistently, knowing all the components are in one place.
